该产品集成了公司的精密挤出技术和吹膜成型技术，具有操控调节方便性能稳定、原料适用性广以及用料少，占地面积小等优点，适合小批量膜袋生产、配方优化。
型号
Model
YB-20-ABCDE
适用材料
Applicable Materials
PA66、PE、PBAT、PLA
螺杆直径
Screw Diameter
Φ20mm
螺杆长径比
Screw L/D Ratio
螺杆转速
Screw Speed
110rpm
最大折径
Max Folded Diameter
390mm
制品规格
Product Specification
0.02-0.1mm
棍面宽度
Roll Width
400mm
线速度
Linear Velocity
0-10m/min
操作温度
Operating Temperature
Room temperature - 250℃
温度控制精度
Temperature Control Accuracy
±1℃
控制方式①
Control Method
PLC plus touch screen control
控制方式②
PIC 16-way heating
主电机功率
Main Motor Power
1500W servo motor*3
最高产量
Max Production
5-25kg/h
电压电流
Working Voltage And Current
380V 22A/50Hz
额定功率
Rated Power
20kW
产品尺寸
Product Size
245024002300mm
产品重量
Total Weight
500kg

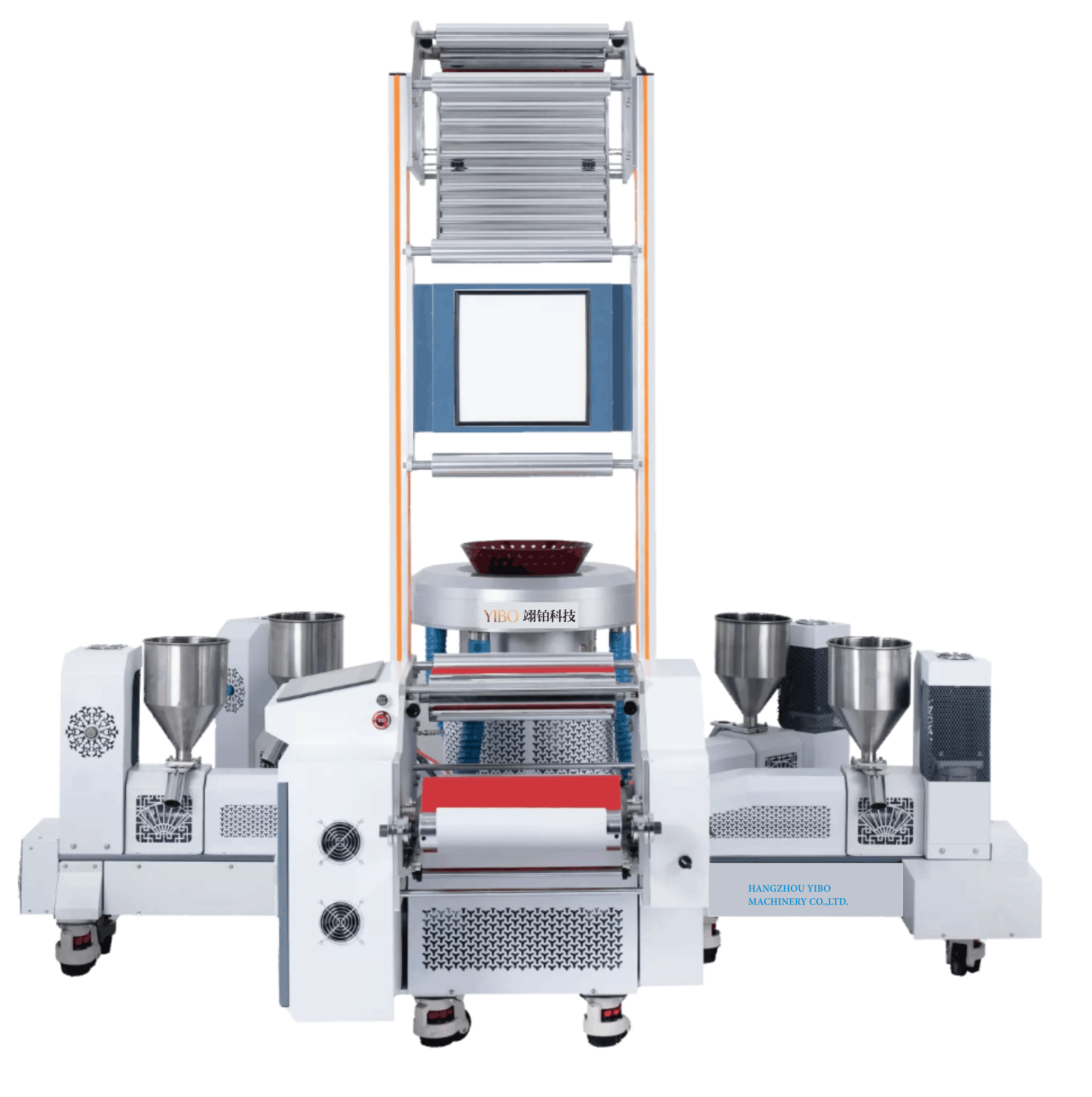

5 台独立螺杆挤出机，螺杆直径 25mm、高度 3.5 米，搭配伺服电机驱动。
每层配置压力传感器，实时监测熔体压力，确保挤出稳定性。
上牵引水平旋转系统 (±360°)，减少薄膜褶皱。
胶辊尺寸 100mm×500mm，适配实验室生产需求。
PLC + 触摸屏界面，实时显示流量、压力、扭矩、层厚比等参数。
集成纠偏系统 (EPC)，提升收卷整齐度。
高精度：层厚误差≤3%，膜泡稳定性 ±1mm。
材料广：支持 PE、PA、EVOH、PBAT 等，满足食品包装、生物降解膜等研发。
灵活高效：占地小（约 3.2×2.9 米）、耗材少（工业设备 1/10），适合实验室小批量测试。
5 independent screw extruders, with screw diameter of 25mm and height of 3.5m, driven by servo motors.
Each layer is equipped with pressure sensors to monitor melt pressure in real time, ensuring extrusion stability.
Upward traction horizontal rotation system (±360°) to reduce film wrinkles.
Rubber roller size: 100mm × 500mm, suitable for laboratory production needs.
PLC + touch screen interface, real-time display of flow rate, pressure, torque, layer thickness ratio and other parameters.
Integrated EPC system to improve winding neatness.
High precision: layer thickness error ≤ 3%, bubble stability ±1mm.
Wide material compatibility: supports PE, PA, EVOH, PBAT, etc., meeting R&D needs for food packaging and biodegradable films.
Flexible and efficient: small footprint (about 3.2×2.9m), low consumables (1/10 of industrial equipment), ideal for small-batch laboratory testing.
